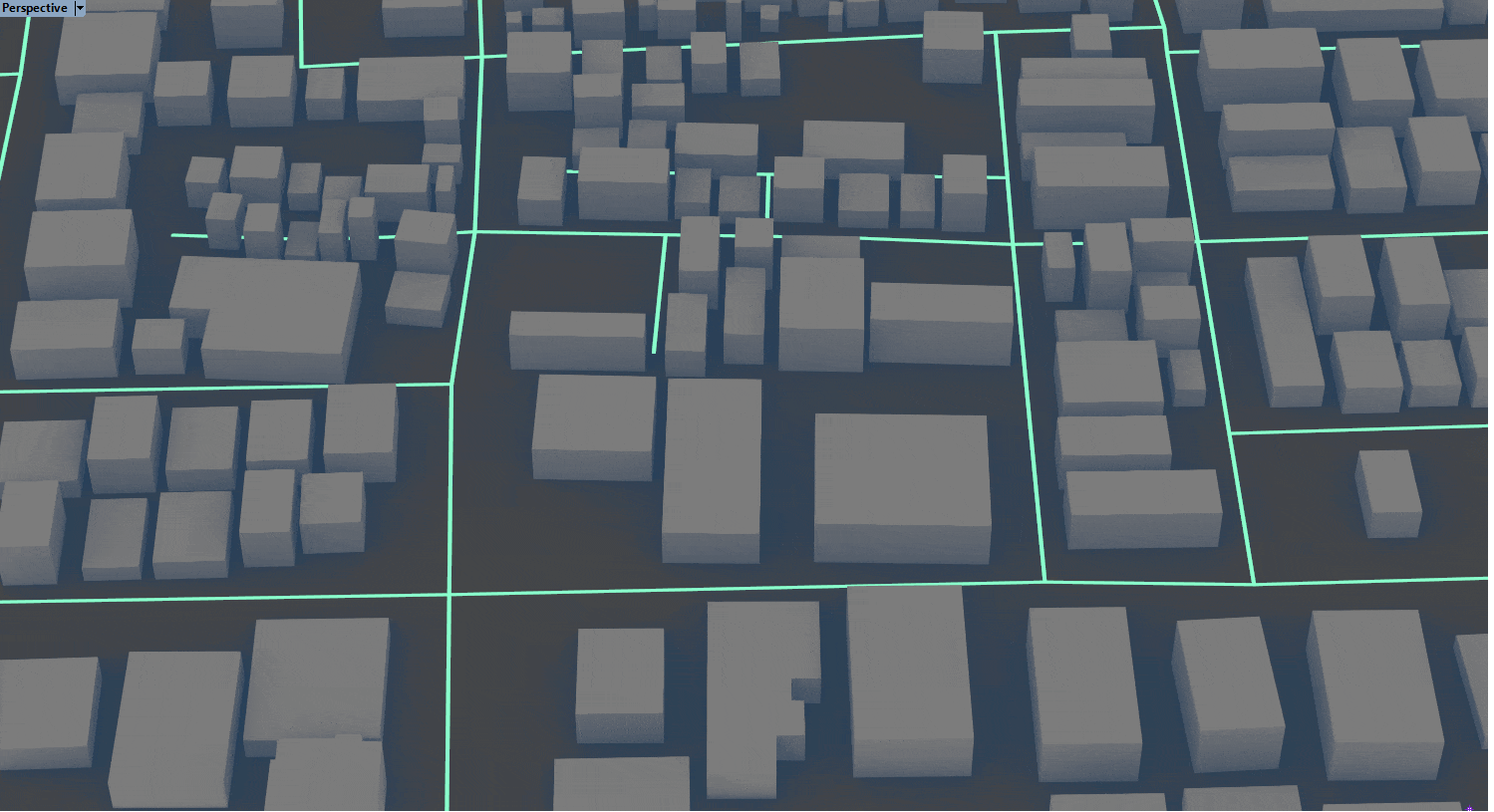

A quick peek into creating an urban planning toolkit in grasshopper using OSM data.

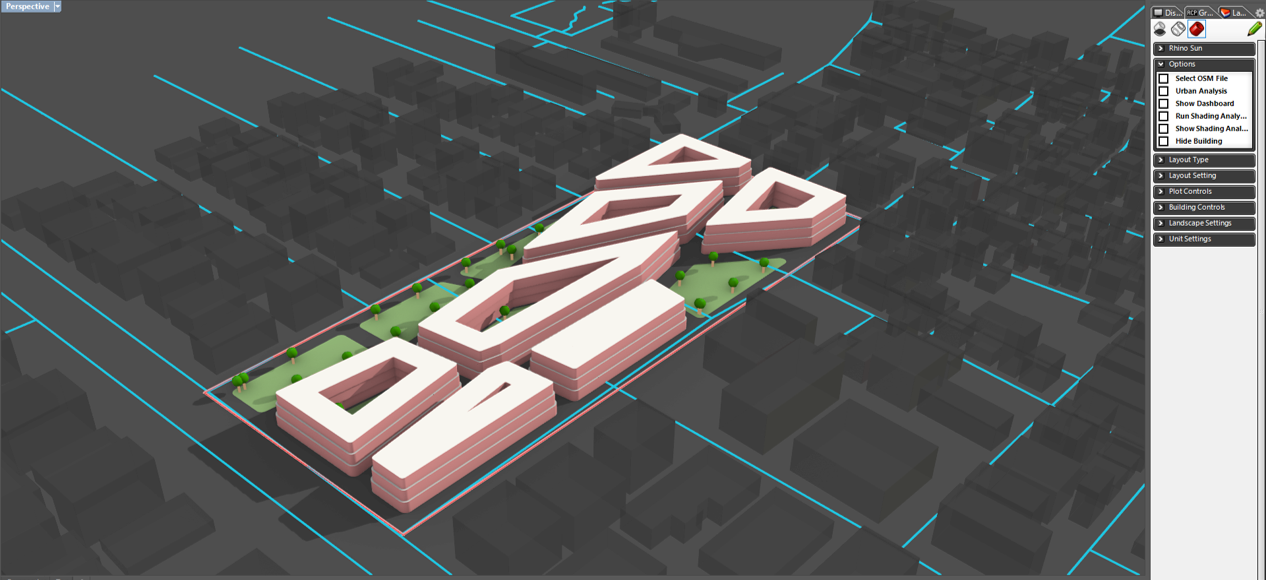

Footprint Creation using Voronoi as well as 4 other grid layout options.

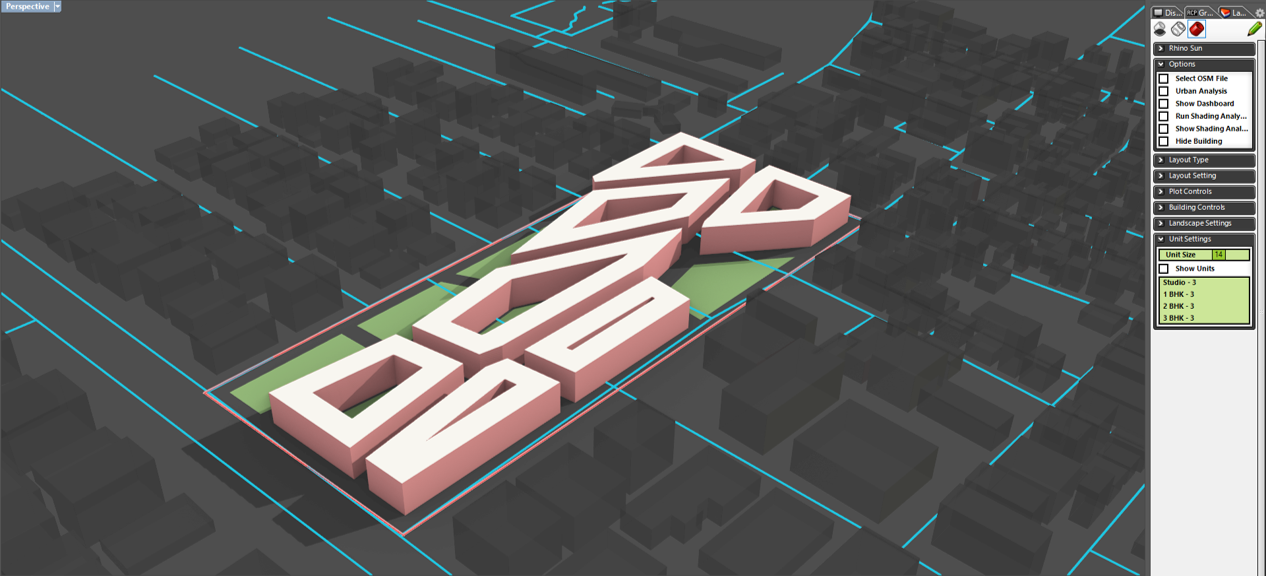

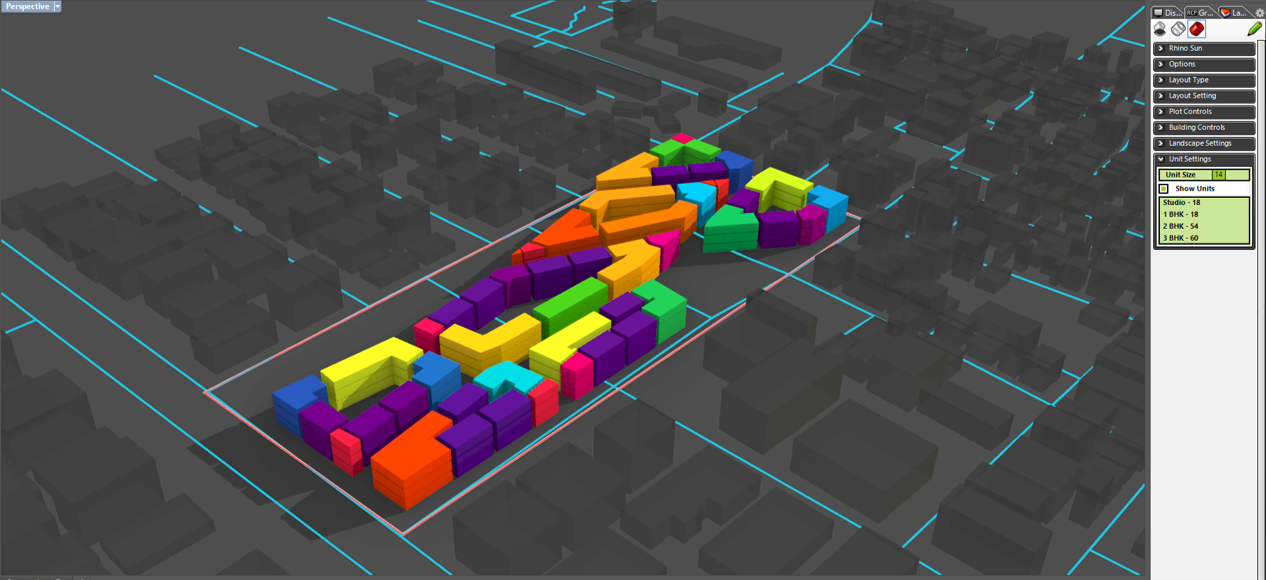

A quick and dirty unit layout organiser. The idea is to simply create a proof of concept to what is achievable.

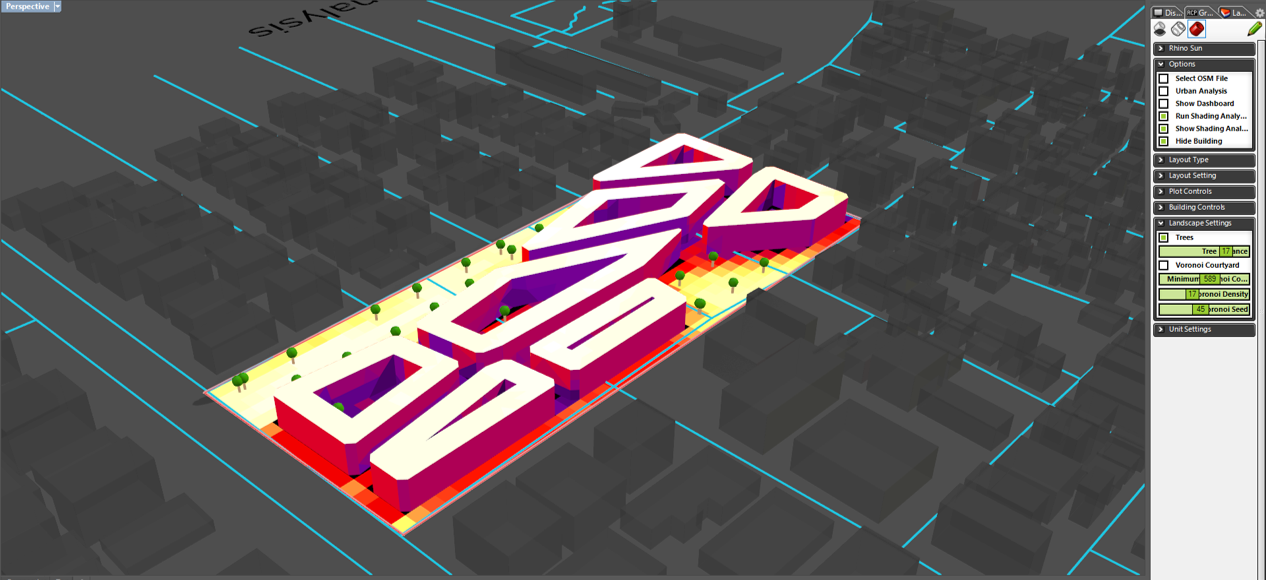

A low resolution radiation analysis using Ladybug Tools.
This Urban Planner is a part of a workshop "Urban Geodata and Grasshopper".
The workshop is developed by Vinay Zachariah and myself, hosted by rat[LAB] Education.
Link to workshop - https://lnkd.in/d5PqW-s

The demo was created to show what is possible with grasshopper and it's plugin ecosystem.
Plugins used
ELK2
Puffer Fish
Decoding Spaces Toolbox
Ladybug Tools
LunchBox
Conduit
Human
Human UI
Clipper
Parakeet
And probably a few more.
